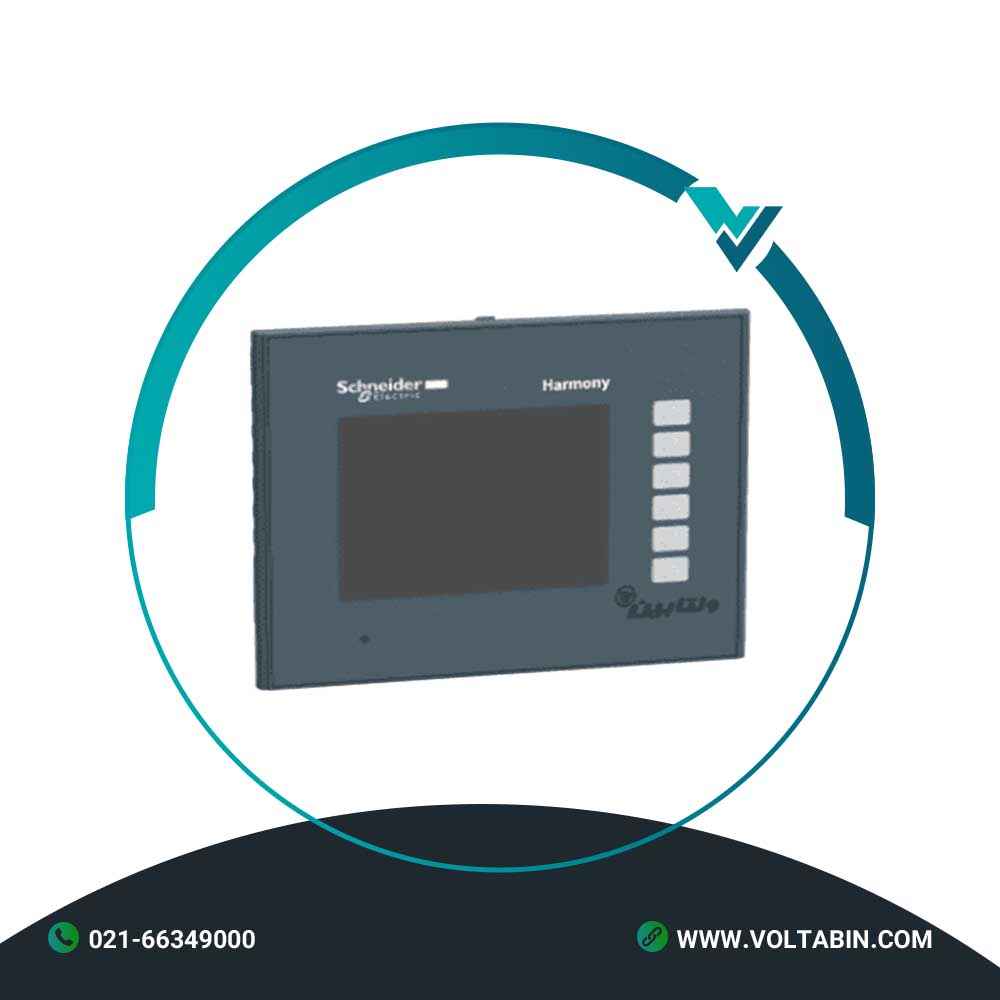

HMIGTO1310
- Excellent screen resolution
- Touchscreen for displaying synoptic views
- Multicolor status LED for indicating panel’s operating mode
- Easy installation and operation
- Easy environment adaptation
-
Range of product Harmony GTO Product or component type Advanced touchscreen panel Display colour 65536 colours Display size 3.5 inch Supply External source Control button type 6 operation defined using Vijeo Designer push-button key F1…F6 Operating system Harmony Battery type Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) Terminal type Touchscreen display Display type Backlit colour TFT LCD Display resolution 320 x 240 pixels QVGA Touch sensitive zone 1024 x 1024 Touch panel Resistive film, 1000000 cycles Backlight lifespan 50000 hours white at 25 °C Brightness 16 levels – control by touch panel
16 levels – control by softwareCharacter font Chinese (simplified Chinese)
Korean
Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
ASCII (European characters)[Us] rated supply voltage 24 V DC Supply voltage limits 19.2…28.8 V Inrush current 30 A Maximum power consumption in W 5.2 W when power is not supplied to external devices
4.2 W when backlight is OFF
4.3 W when backlight is dimmed
9.6 WLocal signalling Status LED green, steady for offline
Status LED green, steady for operating
Status LED orange, flashing for software starting up
Status LED red, steady for power supply (ON)
Status LED clear, faded for power supply (OFF)Software designation Vijeo Designer configuration software >= V6.1 Memory description Flash EPROM, 96 MB Data backed up 512 kB internal RAM (SRAM) Data storage equipment SD card, <= 32 GB
SDHC card, <= 32 GBDownloadable protocols Schneider Electric Modicon Modbus
Schneider Electric Modicon Uni-TE
Schneider Electric Modicon Modbus Plus
Schneider Electric Modicon FIPWAY
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Schneider Electric Modicon Modbus TCPIntegrated connection type COM1 serial link RJ45, interface: RS232C/RS485, transmission rate: 2400…115200 bps
COM1 serial link RJ45, interface: RS232C/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI
Ethernet RJ45, interface: 10BASE-T/100BASE-TX
Ethernet RJ45, interface: IEEE 802.3
USB 2.0 type A
USB 2.0 type mini BProduct mounting Flush mounting Fixing mode By 4 screw clamps Front material PPT Enclosure material PPT Type of cooling Natural convection Width 132 mm Height 106 mm Depth 42 mm Net weight 0.4 kg Standards IEC 61000-6-2
UL 508
EN 61131-2Product certifications KCC
cULus
C-Tick
CE
UKCA
UKEXAmbient air temperature for operation 0…50 °C Ambient air temperature for storage -20…60 °C Relative humidity 10…90 % without condensation Operating altitude < 2000 m IP degree of protection IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529NEMA degree of protection NEMA 4X front panel (indoor use) Shock resistance 147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2 Vibration resistance 3.5 mm (f = 5…9 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – conforming to EN/IEC 61131-2
1 gn (f = 9…150 Hz) – X, Y, Z directions for 10 cycles (approx. 100 min) – conforming to EN/IEC 61131-2Resistance to electrostatic discharge 6 kV contact discharge conforming to IEC 61000-4-2 level 3 Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 12.500 cm Package 1 Width 18.500 cm Package 1 Length 21.000 cm Package 1 Weight 708.000 g Unit Type of Package 2 S03 Number of Units in Package 2 4 Package 2 Height 30.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 3.650 kg
