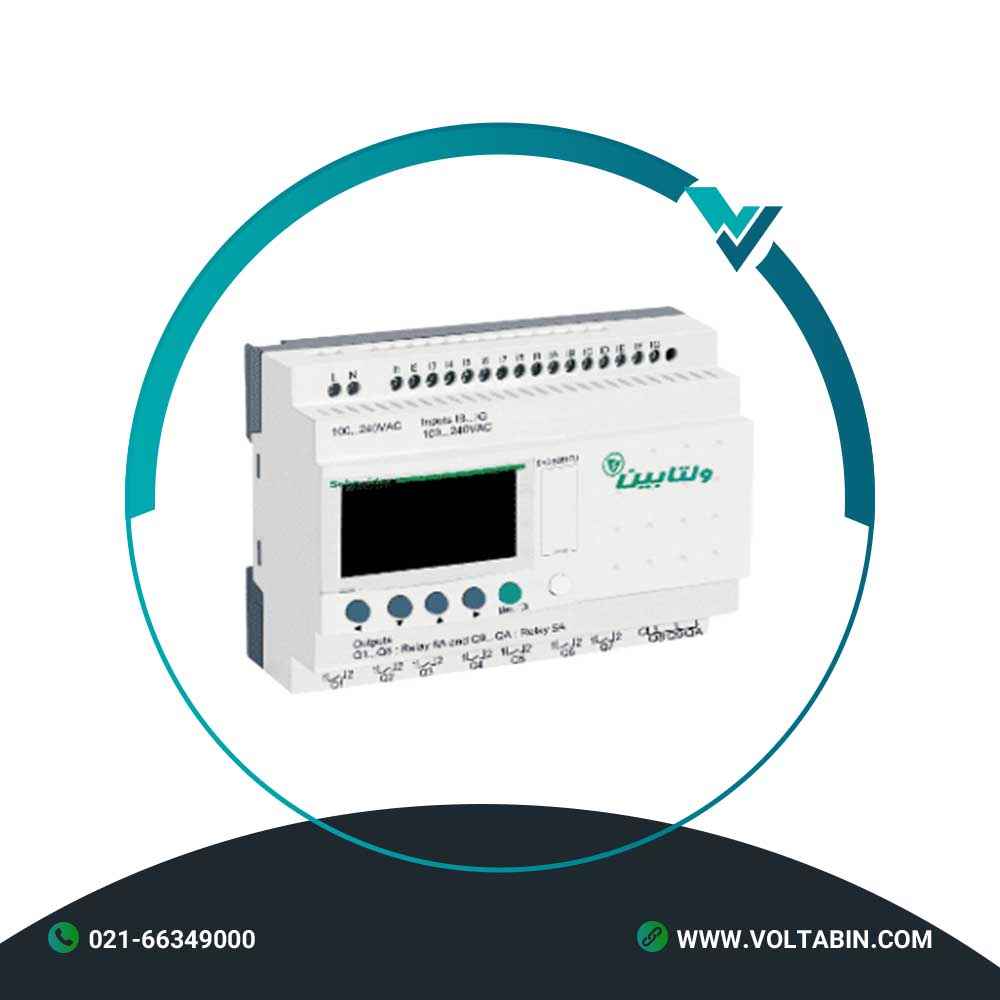

| local display | With |
|---|
| Number or control scheme lines | 0…500 FBD
0…240 ladder |
|---|
| Cycle time | 6…90 ms |
|---|
| Backup time | 10 years 77 °F (25 °C) |
|---|
| Clock drift | 12 min/year 32…131 °F (0…55 °C)
6 s/month 77 °F (25 °C) |
|---|
| Checks | Program memory on each power up |
|---|
| [Us] rated supply voltage | 24 V |
|---|
| Supply voltage limits | 19.2…30 V |
|---|
| Maximum supply current | 190 mA without extension)
300 mA with extensions) |
|---|
| Power dissipation in W | 10 W with extensions
6 W without extension |
|---|
| Reverse polarity protection | With |
|---|
| Discrete input number | 16 EN/IEC 61131-2 type 1 |
|---|
| Discrete input type | Resistive |
|---|
| Discrete input voltage | 24 V DC |
|---|
| Discrete input current | 4 mA |
|---|
| Counting frequency | 1 kHz discrete input |
|---|
| Voltage state 1 guaranteed | >= 15 V I1…IA and IH…IR discrete input circuit
>= 15 V IB…IG used as discrete input circuit |
|---|
| Voltage state 0 guaranteed | <= 5 V I1…IA and IH…IR discrete input circuit
<= 5 V IB…IG used as discrete input circuit |
|---|
| Current state 1 guaranteed | >= 1.2 mA IB…IG used as discrete input circuit)
>= 2.2 mA I1…IA and IH…IR discrete input circuit) |
|---|
| Current state 0 guaranteed | <= 0.5 mA IB…IG used as discrete input circuit)
<= 0.75 mA I1…IA and IH…IR discrete input circuit) |
|---|
| Input compatibility | 3-wire proximity sensors PNP discrete input |
|---|
| Analogue input number | 6 |
|---|
| Analogue Input Type | Common mode |
|---|
| Analogue input range | 0…10 V
0…24 V |
|---|
| Temperature probe type | NTC 10k 77 °F (25 °C)
NTC 1000k 77 °F (25 °C)
KTY81 210/220/221/222/250
Pt 500 |
|---|
| Maximum permissible voltage | 30 V analogue input circuit |
|---|
| Analogue input resolution | 8 bits |
|---|
| LSB value | 39 mV analogue input circuit |
|---|
| Conversion time | Smart relay cycle time analogue input circuit |
|---|
| Conversion error | +/- 5 % 77 °F (25 °C) analogue input circuit
+/- 6.2 % 131 °F (55 °C) analogue input circuit |
|---|
| Repeat accuracy | +/- 2 % 131 °F (55 °C) analogue input circuit |
|---|
| Operating distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
|---|
| Input impedance | 12 kOhm IB…IG used as analogue input circuit
12 kOhm IB…IG used as discrete input circuit
7.4 kOhm I1…IA and IH…IR discrete input circuit |
|---|
| Number of Outputs | 10 relay |
|---|
| Output voltage limits | 24…250 V AC relay output)
5…30 V DC relay output) |
|---|
| Contacts type and composition | NO relay output |
|---|
| Output thermal current | 5 A for 2 outputs relay output
8 A for 8 outputs relay output |
|---|
| Electrical durability | AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1
AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1
DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1
DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 |
|---|
| Switching capacity in mA | >= 10 mA 12 V relay output) |
|---|
| Operating rate in Hz | 0.1 Hz at Ie)relay output
10 Hz no load)relay output |
|---|
| Mechanical durability | 10000000 cycles relay output |
|---|
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
|---|
| Clock | With |
|---|
| Response time | 10 ms from state 0 to state 1)relay output
5 ms from state 1 to state 0)relay output |
|---|
| Connections – terminals | Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 25…AWG 14) semi-solid
Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 25…AWG 14) solid
Screw terminals, 1 x 0.25…1 x 2.5 mm² AWG 24…AWG 14) flexible with cable end
Screw terminals, 2 x 0.2…2 x 1.5 mm² AWG 24…AWG 16) solid
Screw terminals, 2 x 0.25…2 x 0.75 mm² AWG 24…AWG 18) flexible with cable end |
|---|
| Tightening torque | 4.43 lbf.in (0.5 N.m) |
|---|
| Overvoltage category | III EN/IEC 60664-1 |
|---|
| Net Weight | 0.88 lb(US) (0.4 kg) |
|---|
