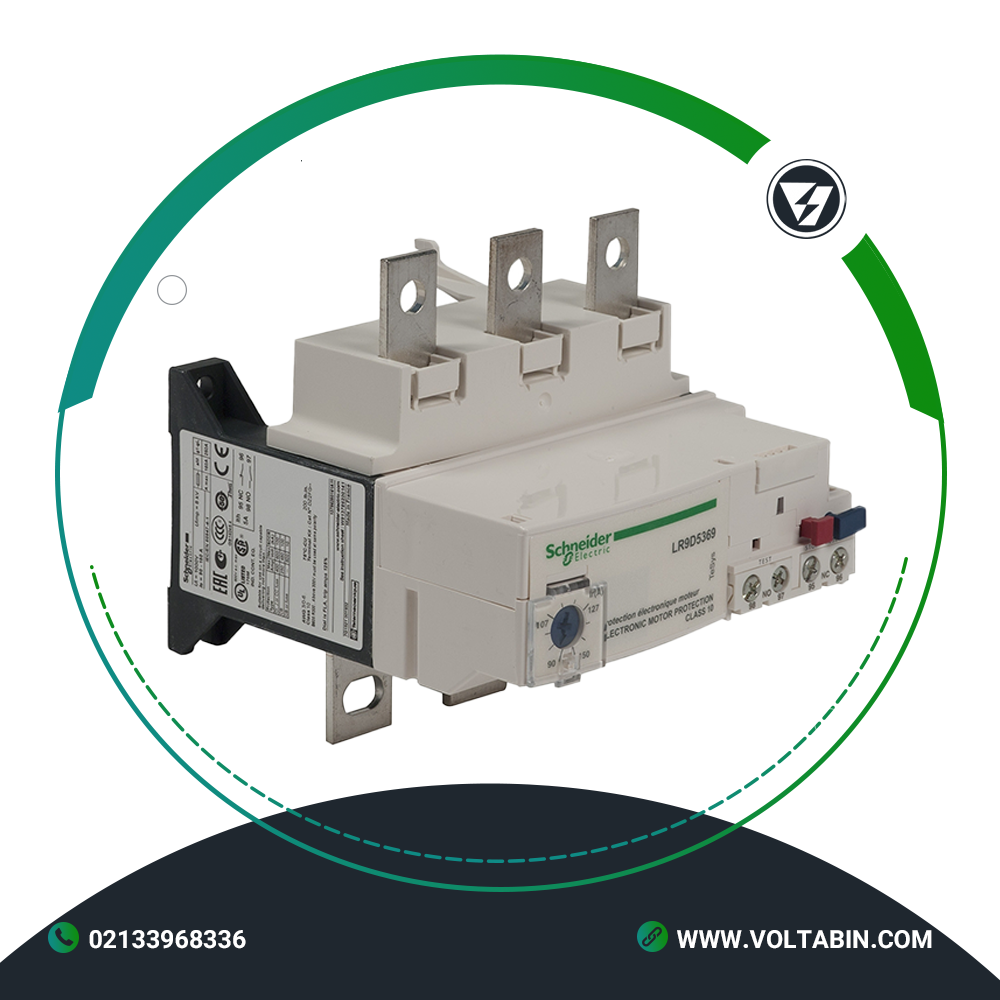

بی متال LR9D5369
- برند اشنایدر
- رنج جریان: 90 تا 150 آمپر
- رنج کنتاکتور: D115 & D150
- موجود در ولتابین
- ارسال به سراسر کشور
LR9D5369
Main
range TeSys product name TeSys LRD
TeSys Decaproduct or component type Electronic thermal overload relay device short name LR9D relay application Motor protection product compatibility NSX circuit breaker
LC1D150
LC1D115network type AC thermal overload class Class 10 conforming to IEC 60947-4-1 signalling function Alarm thermal protection adjustment range 90…150 A [Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Complementary
network frequency 50…60 Hz [Us] rated supply voltage 24 V DC supply voltage limits 17…32 V mounting support Under contactor
Railtripping threshold 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1auxiliary contact composition 1 NO + 1 NC [Ith] conventional free air thermal current 5 A for signalling circuit [Ue] rated operational voltage 690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1 associated fuse rating 4 A gG for signalling circuit
4 A BS for signalling circuit[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 phase failure sensitivity Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 control type Red push-button: stop
Blue push-button: resettemperature compensation -20…60 °C switching capacity in mA 0…150 mA maximum voltage drop <2.5 V closed state connections – terminals Power circuit: bars
Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end
Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable endtightening torque Alarm circuit: 0.45 N.m – on screw clamp terminals
Power circuit: 18 N.m – on bars M8
Control circuit: 1.2 N.m – on screw clamp terminalsheight 118 mm width 115 mm depth 125 mm net weight 0.885 kg
Environment
climatic withstand Conforming to IACS E10 IP degree of protection IP20 conforming to IEC 60529 ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1 ambient air temperature for storage -60…70 °C operating altitude <= 2000 m without derating mechanical robustness Vibrations: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6
Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1 standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5product certifications UL
CSA
CCC
UKCA
Packing Units
Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 924.0 g Package 1 Height 15.0 cm Package 1 width 16.0 cm Package 1 Length 13.0 cm Unit Type of Package 2 S04 Number of Units in Package 2 12 Package 2 Weight 11.88 kg Package 2 Height 30.0 cm Package 2 width 40.0 cm Package 2 Length 60.0 cm Unit Type of Package 3 P06 Number of Units in Package 3 48 Package 3 Weight 56.804 kg Package 3 Height 77.0 cm Package 3 width 80.0 cm Package 3 Length 60.0 cm
