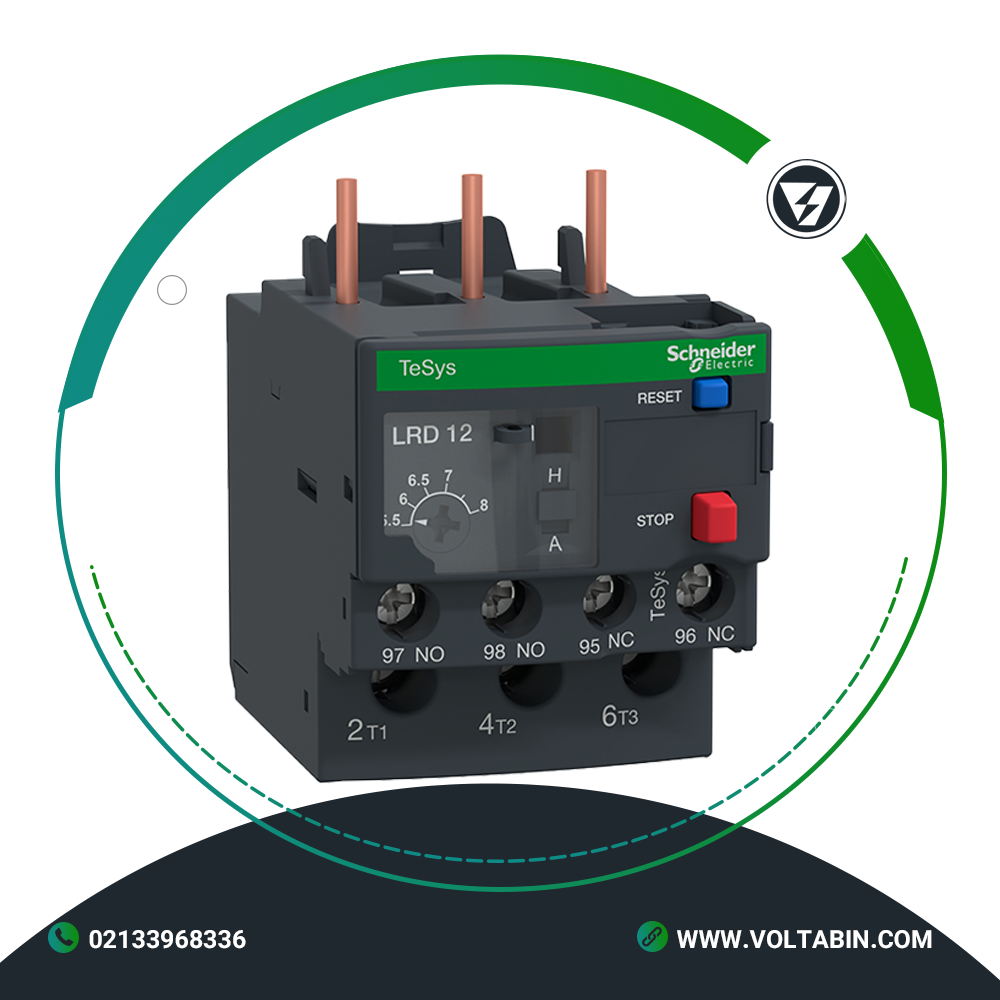

بیمتال LRD12
- برند Schneider
- رنج جریان: 5/5 تا 8 آمپر
- موجود در ولتابین
- ارسال به سراسر کشور
LRD12
Main range TeSys
TeSys Decaproduct name TeSys LRD
TeSys Decaproduct or component type Differential thermal overload relay device short name LRD relay application Motor protection product compatibility LC1D18
LC1D25
LC1D32
LC1D12
LC1D09
LC1D38network type DC
ACthermal overload class Class 10A conforming to IEC 60947-4-1 thermal protection adjustment range 5.5…8 A [Ui] rated insulation voltage Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
Complementary network frequency 0…400 Hz mounting support Plate, with specific accessories
Rail, with specific accessories
Under contactortripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 auxiliary contact composition 1 NO + 1 NC [Ith] conventional free air thermal current 5 A for signalling circuit permissible current 1.5 A at 240 V AC-15 for signalling circuit
0.1 A at 250 V DC-13 for signalling circuit[Ue] rated operational voltage 690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1 associated fuse rating 4 A gG for signalling circuit
4 A BS for signalling circuit[Uimp] rated impulse withstand voltage 6 kV phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0 control type Red push-button: stop
Blue push-button: resettemperature compensation -20…60 °C connections – terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solidtightening torque Control circuit: 1.7 N.m – on screw clamp terminals
Power circuit: 1.7 N.m – on screw clamp terminalsheight 66 mm width 45 mm depth 70 mm net weight 0.124 kg
Environment protective treatment TH conforming to IEC 60068 IP degree of protection IP20 conforming to IEC 60529 ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1 ambient air temperature for storage -60…70 °C flame retardance V1 conforming to UL 94 mechanical robustness Vibrations: 6 Gn conforming to IEC 60068-2-6
Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1 standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495product certifications IEC
UL
CSA
CCC
EAC
BV
RINA
DNV-GL
LROS (Lloyds register of shipping)
ATEX INERIS
UKCA
Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 146 g Package 1 Height 5 cm Package 1 width 7.7 cm Package 1 Length 9 cm Unit Type of Package 2 S02 Number of Units in Package 2 24 Package 2 Weight 3.81 kg Package 2 Height 15 cm Package 2 width 30 cm Package 2 Length 40 cm Unit Type of Package 3 P06 Number of Units in Package 3 384 Package 3 Weight 69.54 kg Package 3 Height 80 cm Package 3 width 80 cm Package 3 Length 60 cm
