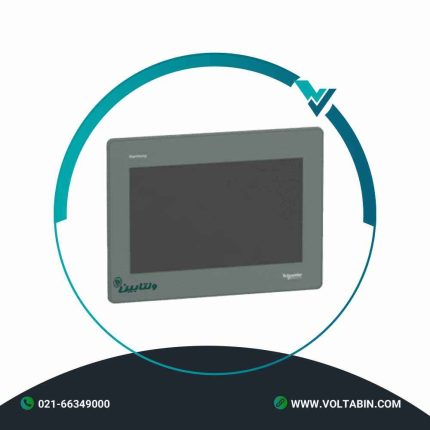

HMIG2U
- These panels are equipped with an Ethernet port and have a built-in FTP server for data file transfer
- Allows Web Gate function for remote access to the panel application from a PC with an Internet browser
Range of product Harmony GTU Product or component type Base unit Device short name Standard box Range compatibility Harmony GTU
Allen-Bradley
ABB
MitsubishI
Omron
Siemens[Us] rated supply voltage 12…24 V DC power supply Integrated connection type Ethernet TCP/IP with 2 RJ45
COM1 serial link SUB-D 9 RS232C, transmission rate: 2400…115200 bps
COM2 serial link RJ45 RS485, transmission rate: 187.5 kbps
USB 2.0 port with 2 USB type A
USB 2.0 port mini B USBCommunication port protocol Modbus
Modbus TCP/IP
Uni-TelwayOperating system Harmony Software package Vijeo Designer run time 8000 variables Processor name CPU RISC 600 MHz Data storage equipment 1 GB built-in flash memory Port Ethernet 10BASE-T/100BASE-T Memory description 256 MB RAM internal (2 x 13 mm board)
512 kB NVRAM backup memoryNumber of slots 1 slot(s) for SD card Realtime clock Built-in Local signalling LED: (steady), green for operating status (RUN)
LED: (faded), green for stand-by
LED: (flashing), orange for software starting up
LED: (steady), red for power ON
LED: (alternate), green, orange and red for module error (ERR)
LED: (alternate), red/orange for boot status
LED: (alternate), green/red for connection statusType of cooling Natural convection Width 188 mm Height 131 mm Depth 45 mm Net weight 0.9 kg Standards CSA C22.2 No 142
ANSI/ISA 12-12-01
UL 508
Class I division 2 CSA C22.2 No 213
IEC 61132-2Product certifications CE
CULus
ATEX
IEC-Ex
RCM
GL
KC
CUL
EAC
UKCA
UKEXResistance to fast transients 1 kV (signal ports) conforming to IEC 61000-4-4
2 kV (power ports) conforming to IEC 61000-4-4Resistance to electrostatic discharge 6 kV contact discharge conforming to EN/IEC 61000-4-2 level 3
8 kV air discharge conforming to EN/IEC 61000-4-2 level 3Ambient air temperature for operation 0…60 °C Ambient air temperature for storage -20…60 °C Pollution degree 2 conforming to EN 61131-2 Ed.3 Environmental characteristic Corrosive gas free Relative humidity 10…90 % non-condensing Operating altitude 2000 m Vibration resistance 3.5 mm constant amplitude (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 13.5 cm Package 1 Width 21 cm Package 1 Length 26 cm Package 1 Weight 1.12 kg
