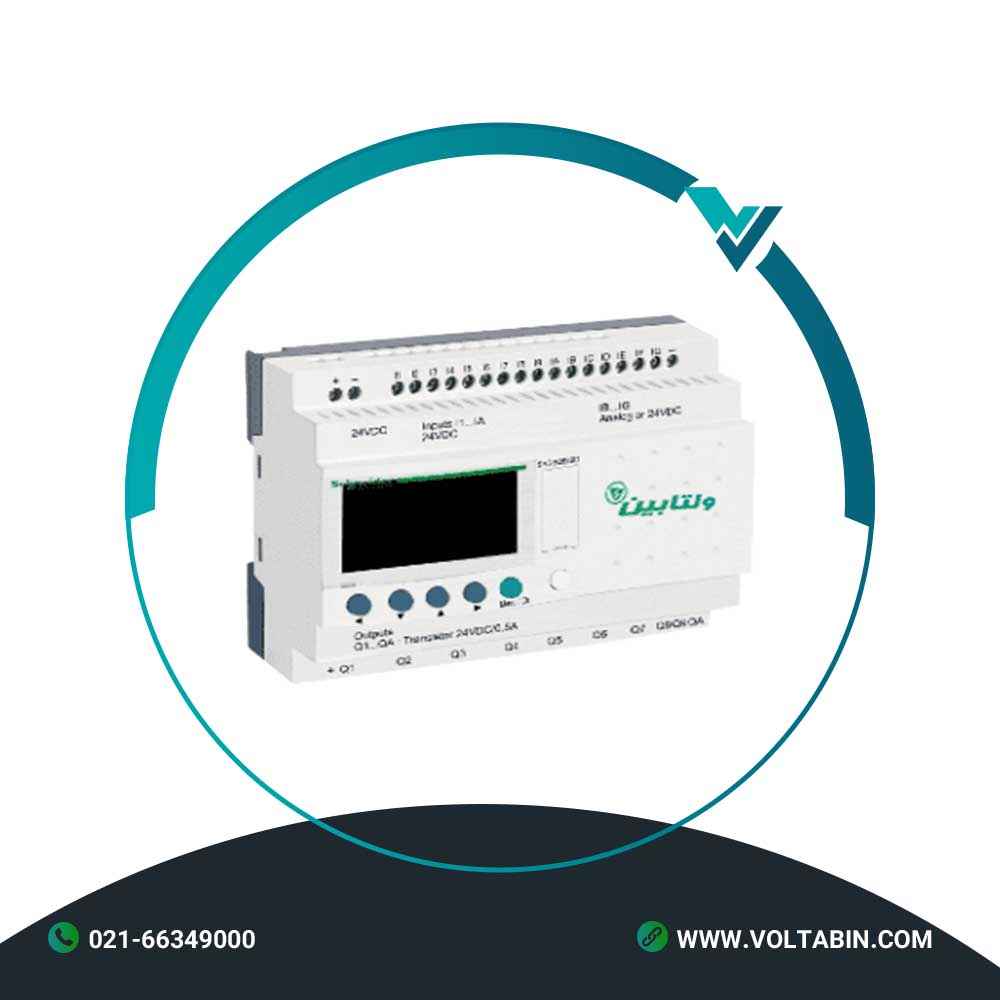

SR3B261JD
- Simple ladder programming, adapted for non-specialists
- Discovery package, coming with Zelio Soft programming software: the simplest way to learn and use this relay
- Built-in EEPROM flash memory for data backup up to 10 years: easy-to-recover after a power shortage or incident
- More I/O than SR2 model, for larger applications
-
Range of product Zelio Logic Product or component type Modular smart relay local display With Number or control scheme lines 0…500 with FBD programming
0…240 with ladder programmingCycle time 6…90 ms Backup time 10 years at 25 °C Clock drift 12 min/year at 0…55 °C
6 s/month at 25 °CChecks Program memory on each power up [Us] rated supply voltage 12 V Supply voltage limits 10.4…14.4 V Maximum supply current 250 mA (without extension)
400 mA (with extensions)Power dissipation in W 3 W without extension
5 W with extensionsReverse polarity protection With Discrete input number 16 conforming to EN/IEC 61131-2 type 1 Discrete input type Resistive Discrete input voltage 12 V DC Discrete input current 4 mA Counting frequency 1 kHz for discrete input Voltage state 1 guaranteed >= 7 V for IB…IG used as discrete input circuit
>= 5.6 V for I1…IA and IH…IR discrete input circuitVoltage state 0 guaranteed <= 3 V for IB…IG used as discrete input circuit
<= 2.4 V for I1…IA and IH…IR discrete input circuitCurrent state 1 guaranteed >= 2 mA (I1…IA and IH…IR discrete input circuit)
>= 0.5 mA (IB…IG used as discrete input circuit)Current state 0 guaranteed <= 0.2 mA (IB…IG used as discrete input circuit)
<= 0.9 mA (I1…IA and IH…IR discrete input circuit)Input compatibility 3-wire proximity sensors PNP for discrete input Analogue input number 6 Analogue input type Common mode Analogue input range 0…12 V
0…10 VMaximum permissible voltage 14.4 V for analogue input circuit Analogue input resolution 8 bits at maximum voltage LSB value 39 mV for analogue input circuit Conversion time Smart relay cycle time for analogue input circuit Conversion error +/- 5 % at 25 °C for analogue input circuit
+/- 6.2 % at 55 °C for analogue input circuitRepeat accuracy +/- 2 % at 55 °C for analogue input circuit Operating distance 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit Input impedance 14 kOhm for IB…IG used as analogue input circuit
14 kOhm for IB…IG used as discrete input circuit
2.7 kOhm for I1…IA and IH…IR discrete input circuitNumber of outputs 10 relay Output voltage limits 24…250 V AC (relay output)
5…30 V DC (relay output)Contacts type and composition NO for relay output Output thermal current 5 A for 2 outputs for relay output
8 A for 8 outputs for relay outputElectrical durability AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1
DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1Switching capacity in mA >= 10 mA at 12 V (relay output) Operating rate in Hz 0.1 Hz (at Ie) for relay output
10 Hz (no load) for relay outputMechanical durability 10000000 cycles for relay output [Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 Clock With Response time 10 ms (from state 0 to state 1) for relay output
5 ms (from state 1 to state 0) for relay outputConnections – terminals Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 25…AWG 14) semi-solid
Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 25…AWG 14) solid
Screw terminals, 1 x 0.25…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end
Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) solid
Screw terminals, 2 x 0.25…2 x 0.75 mm² (AWG 24…AWG 18) flexible with cable endTightening torque 0.5 N.m Overvoltage category III conforming to EN/IEC 60664-1 Net weight 0.4 kg Immunity to microbreaks 1 ms repeated 20 times Product certifications C-Tick
UL
CSA
GL
GOSTStandards EN/IEC 60068-2-6 Fc
EN/IEC 61000-4-12
EN/IEC 61000-4-3
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-5
EN/IEC 61000-4-11
EN/IEC 61000-4-2 level 3
EN/IEC 60068-2-27 Ea
EN/IEC 61000-4-4 level 3IP degree of protection IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529Environmental characteristic EMC directive conforming to EN/IEC 61000-6-2
EMC directive conforming to EN/IEC 61000-6-3
EMC directive conforming to EN/IEC 61000-6-4
EMC directive conforming to EN/IEC 61131-2 zone B
Low voltage directive conforming to EN/IEC 61131-2Disturbance radiated/conducted Class B conforming to EN 55022-11 group 1 Pollution degree 2 conforming to EN/IEC 61131-2 Ambient air temperature for operation -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
-20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2Ambient air temperature for storage -40…70 °C Operating altitude 2000 m Maximum altitude transport 3048 m Relative humidity 95 % without condensation or dripping water Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 6.8 cm Package 1 Width 10 cm Package 1 Length 13.3 cm Package 1 Weight 383 g Unit Type of Package 2 S03 Number of Units in Package 2 20 Package 2 Height 30 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 8.056 kg
