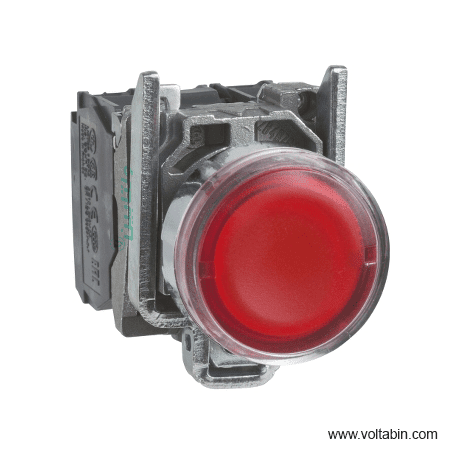

XB4BW34B5
Range of Product Harmony XB4 Product or Component Type Illuminated push-button device short name XB4 Bezel material Chromium plated metal Fixing collar material Zamak Mounting diameter 0.87 in (22 mm) Sale per indivisible quantity 1 Head type Standard Shape of signaling unit head Round Type of operator Spring return Operator profile Red flush Operator additional information With plain lens Contacts type and composition 1 NO + 1 NC Contact operation Slow-break Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end EN/IEC 60947-1Light source Universal LED Bulb base Integral LED [Us] rated supply voltage 24 V AC/DC 50/60 Hz Height 1.85 in (47 mm) Width 1.18 in (30 mm) Depth 2.24 in (57 mm) Terminals description ISO n°1 (13-14)NO
(21-22)NCProduct Weight 0.21 lb(US) (0.097 kg) Resistance to high pressure washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m Contacts usage Standard contacts Positive opening With EN/IEC 60947-5-1 appendix K Operating travel 0.06 in (1.5 mm) NC changing electrical state)
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel)Operating force 3.5 N NC changing electrical state
3.8 NMechanical durability 10000000 cycles Tightening torque 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mmContacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse gG EN/IEC 60947-5-1 [Ith] conventional free air thermal current 10 A EN/IEC 60947-5-1 [Ui] rated insulation voltage 600 V 3)EN/IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV EN/IEC 60947-1 [Ie] rated operational current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix CElectrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4Signalling type Steady Current Consumption 18 mA Service life 100000 h at rated voltage and 25 °C Surge withstand 1 kV IEC 61000-4-5 Supply voltage limits 19.2…30 V DC
21.6…26.4 V ACDevice presentation Complete product Protective treatment TH Ambient Air Temperature for Storage -40…158 °F (-40…70 °C) Ambient Air Temperature for Operation -40…158 °F (-40…70 °C) Electrical shock protection class Class I IEC 60536 IP degree of protection IP66 IEC 60529
IP67
IP69
IP69KNEMA degree of protection NEMA 13
NEMA 4XIK degree of protection IK06 IEC 50102 Standards EN/IEC 60947-5-5
UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
JIS C8201-1Product Certifications BV
UL Listed
DNV
CSA
LROS (Lloyds register of shipping)
GLVibration resistance 5 gn 2…500 Hz)IEC 60068-2-6 Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27Resistance to fast transients 2 kV IEC 61000-4-4 Resistance to electromagnetic fields 9.14 V/m (10 V/m) IEC 61000-4-3 Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2Electromagnetic emission Class B IEC 55011 Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.38 in (3.500 cm) Package 1 Width 2.17 in (5.500 cm) Package 1 Length 3.54 in (9.000 cm) Package 1 Weight 3.40 oz (96.300 g) Unit Type of Package 2 S03 Number of Units in Package 2 150 Package 2 Height 11.81 in (30.000 cm) Package 2 Width 11.81 in (30.000 cm) Package 2 Length 15.75 in (40.000 cm) Package 2 Weight 32.78 lb(US) (14.867 kg) Unit Type of Package 3 P06 Number of Units in Package 3 1200 Package 3 Height 29.53 in (75.000 cm) Package 3 Width 31.50 in (80.000 cm) Package 3 Length 23.62 in (60.000 cm) Package 3 Weight 279.84 lb(US) (126.932 kg)
