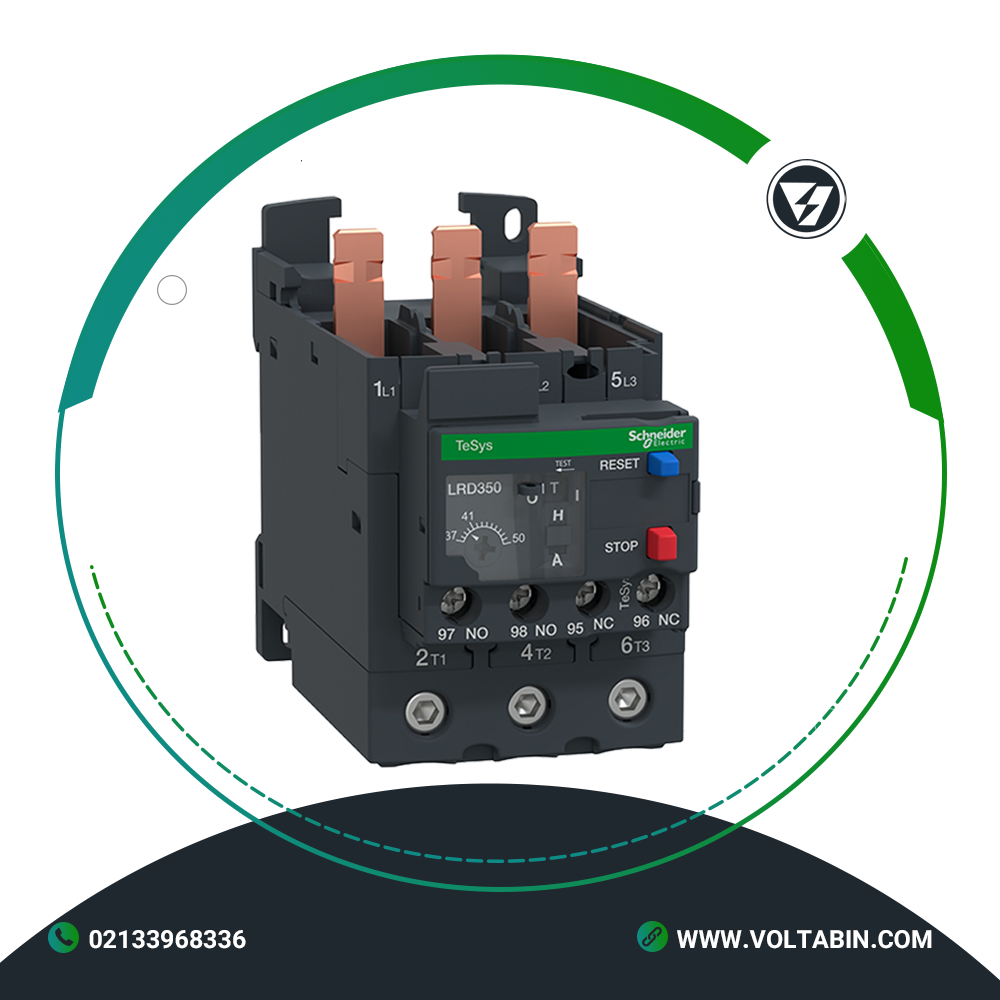

LRD350
برای بزرگنمایی کلیک کنید
خانه اشنایدر الکتریک الکتریکال بی متال اشنایدر LRD350
LRD340
LRD340
بازگشت به محصولات
LRD32
LRD32

LRD350

Main
rangeTeSys
TeSys Deca
product nameTeSys LRD
TeSys Deca
product or component typeDifferential thermal overload relay
device short nameLRD
relay applicationMotor protection
product compatibilityLC1D65A
LC1D50A
LC1D40A
network typeDC
AC
thermal overload classClass 10A conforming to IEC 60947-4-1
thermal protection adjustment range37…50 A
[Ui] rated insulation voltagePower circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
Complementary
network frequency0…400 Hz
mounting supportPlate, with specific accessories
Rail, with specific accessories
Under contactor
tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current5 A for signalling circuit
permissible current0.95 A at 380 V AC-15 for signalling circuit
0.06 A at 440 V DC-13 for signalling circuit
[Ue] rated operational voltage690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1
associated fuse rating4 A gG for signalling circuit
4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage6 kV
phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
control typeRed push-button: stop
Blue push-button: reset
temperature compensation-20…60 °C
connections – terminalsControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid without cable end
tightening torqueControl circuit: 1.7 N.m – on screw clamp terminals
Power circuit: 5 N.m – on EverLink BTR screw connectors

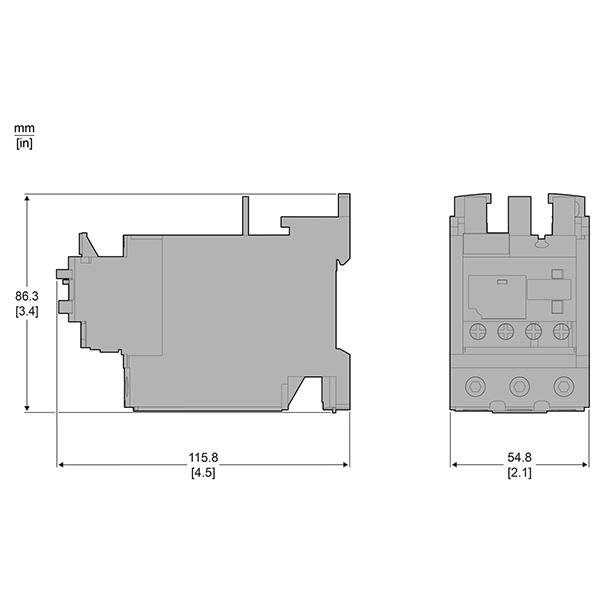

height70 mm
width55 mm
depth123 mm
net weight0.375 kg
Environment
protective treatmentTH conforming to IEC 60068
IP degree of protectionIP20 conforming to IEC 60529
ambient air temperature for operation-20…60 °C without derating conforming to IEC 60947-4-1
ambient air temperature for storage-60…70 °C
flame retardanceV1 conforming to UL 94
mechanical robustnessShocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 4 gn conforming to IEC 60068-2-6
dielectric strength1.89 kV at 50 Hz conforming to IEC 60947-1
standardsEN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
EN 50495
product certificationsIEC
UL
CSA
CCC
EAC
DNV-GL
RMRS
EU-RO MR
LROS (Lloyds register of shipping)
ATEX INERIS
UKCA
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Weight402 g
Package 1 Height6.4 cm
Package 1 width10.4 cm
Package 1 Length13.6 cm
Unit Type of Package 2S02
Number of Units in Package 213
Package 2 Weight5.504 kg
Package 2 Height15 cm
Package 2 width30 cm
Package 2 Length40 cm
Unit Type of Package 3P06
Number of Units in Package 3208
Package 3 Weight96.564 kg
Package 3 Height77 cm
Package 3 width80 cm
Package 3 Length60 cm

مقايسه
دسته: اشنایدر الکتریک, الکتریکال, بی متال اشنایدر برچسب: LRD350, بی متال اشنایدر, بیمتال LRD350 اشنایدر, بیمتال اشنایدر
اشتراک گذاری:
  • توضیحات
  • نظرات (0)
توضیحات

بیمتال LRD350

  • برند اشنایدر الکتریک
  • رنج جریان: 37 الی 50 آمپر
  • کنتاکت های کمکی: 1NO+1NC
  • کاربرد محصول: حفاظت موتور قابل نصب بر روی کنتاکتورهای LC1D40A LC1D50A LC1D65A
  • موجود در ولتابین
  • ارسال به سراسر کشور
