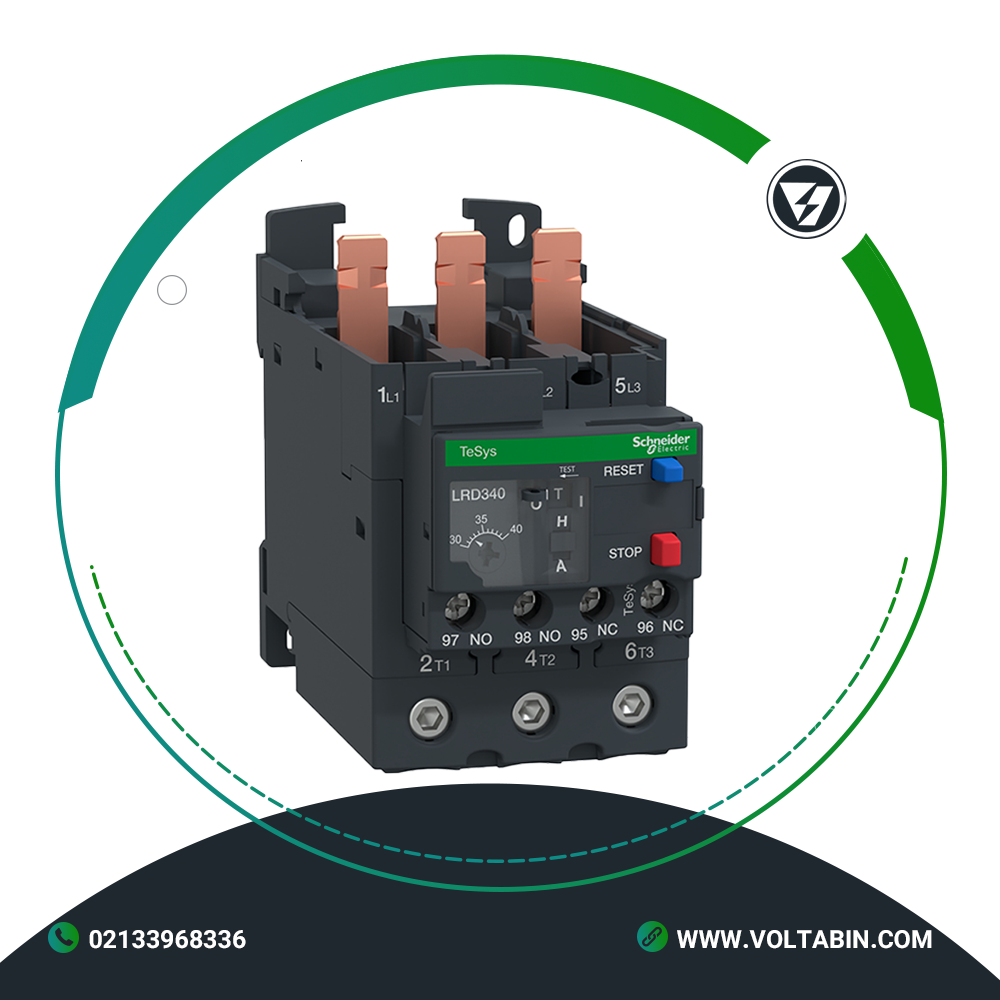

LRD340
range TeSys
TeSys Decaproduct name TeSys LRD
TeSys Decaproduct or component type Differential thermal overload relay device short name LRD relay application Motor protection product compatibility LC1D65A
LC1D50A
LC1D40Anetwork type AC
DCthermal overload class Class 10A conforming to IEC 60947-4-1 thermal protection adjustment range 30…40 A [Ui] rated insulation voltage Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1network frequency 0…400 Hz mounting support Plate, with specific accessories
Rail, with specific accessories
Under contactortripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 auxiliary contact composition 1 NO + 1 NC [Ith] conventional free air thermal current 5 A for signalling circuit permissible current 0.95 A at 380 V AC-15 for signalling circuit
0.06 A at 440 V DC-13 for signalling circuit[Ue] rated operational voltage 690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1 associated fuse rating 4 A gG for signalling circuit
4 A BS for signalling circuit[Uimp] rated impulse withstand voltage 6 kV phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0 control type Red push-button: stop
Blue push-button: resettemperature compensation -20…60 °C connections – terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid without cable endtightening torque Control circuit: 1.7 N.m – on screw clamp terminals

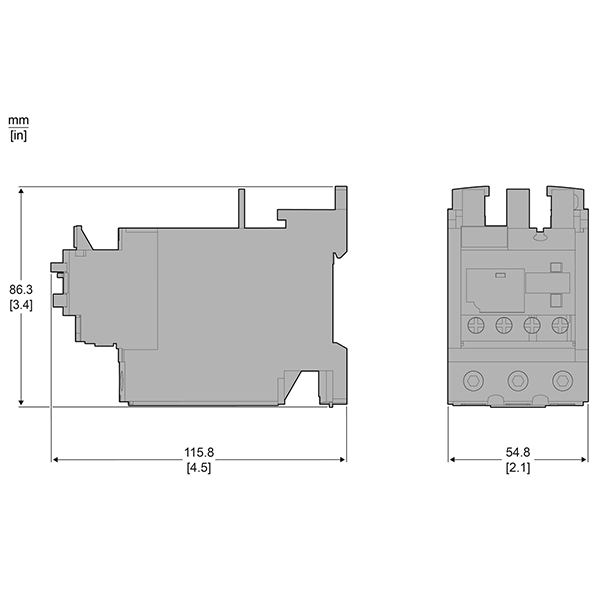

Power circuit: 5 N.m – on EverLink BTR screw connectorsheight 70 mm width 55 mm depth 123 mm net weight 0.375 kg protective treatment TH conforming to IEC 60068 IP degree of protection IP20 conforming to IEC 60529 ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1 ambient air temperature for storage -60…70 °C flame retardance V1 conforming to UL 94 mechanical robustness Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 4 gn conforming to IEC 60068-2-6dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1 standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495product certifications IEC
UL
CSA
CCC
EAC
DNV-GL
RMRS
EU-RO MR
LROS (Lloyds register of shipping)
ATEX INERIS
UKCAUnit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 402 g Package 1 Height 6.4 cm Package 1 width 10.4 cm Package 1 Length 13.6 cm Unit Type of Package 2 S02 Number of Units in Package 2 13 Package 2 Weight 5.506 kg Package 2 Height 15 cm Package 2 width 30 cm Package 2 Length 40 cm Unit Type of Package 3 P06 Number of Units in Package 3 208 Package 3 Weight 96.596 kg Package 3 Height 77 cm Package 3 width 80 cm Package 3 Length 60 cm
