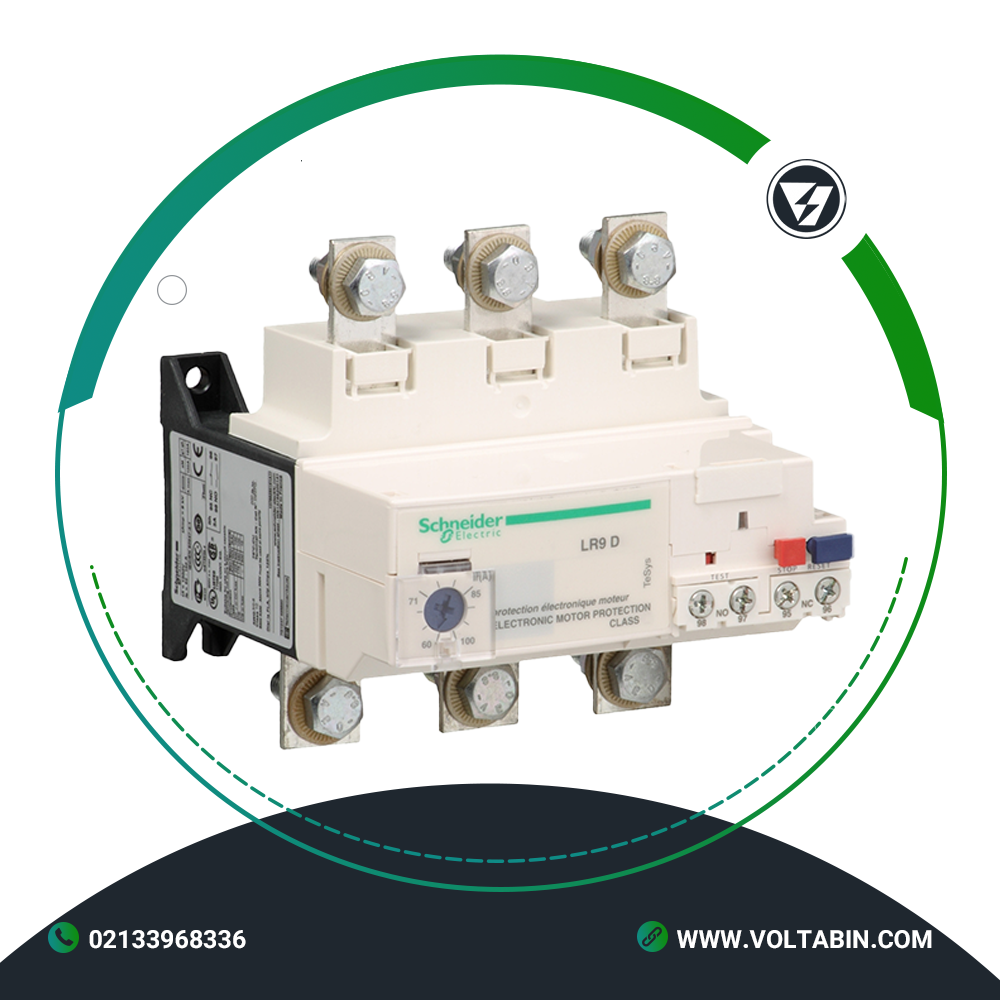

بی متال LR9D5367
- برند: اشنایدر
- رنج جریان: 60 تا 100 آمپر
- مخصوص کنتاکتور سری LC1D115 و LC1D150 اشنایدر الکتریک
- موجود در ولتابین
- ارسال به سراسر کشور
LR9D5367
Main range TeSys product name TeSys LRD
TeSys Decaproduct or component type Electronic thermal overload relay device short name LR9D relay application Motor protection product compatibility LC1D115
LC1D150
NSX circuit breakernetwork type AC thermal overload class Class 10 conforming to IEC 60947-4-1 signalling function Alarm thermal protection adjustment range 60…100 A [Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to ULnetwork frequency 50…60 Hz [Us] rated supply voltage 24 V DC supply voltage limits 17…32 V mounting support Under contactor
Railtripping threshold 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1auxiliary contact composition 1 NO + 1 NC [Ith] conventional free air thermal current 5 A for signalling circuit [Ue] rated operational voltage 690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1 associated fuse rating 4 A gG for signalling circuit
4 A BS for signalling circuit[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 phase failure sensitivity Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 control type Red push-button: stop
Blue push-button: resettemperature compensation -20…60 °C switching capacity in mA 0…150 mA maximum voltage drop <2.5 V closed state connections – terminals Power circuit: bars
Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end
Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable endtightening torque Alarm circuit: 0.45 N.m – on screw clamp terminals
Power circuit: 18 N.m – on bars M8
Control circuit: 1.2 N.m – on screw clamp terminalsheight 118 mm width 115 mm depth 125 mm net weight 0.885 kg
Environment protective treatment TH conforming to IEC 60068 IP degree of protection IP20 conforming to IEC 60529 ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1 ambient air temperature for storage -60…70 °C operating altitude <= 2000 m without derating mechanical robustness Vibrations: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6
Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7dielectric strength 1.89 kV at 50 Hz conforming to IEC 60947-1 standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5product certifications UL
CSA
CCC
UKCA
Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 922 g Package 1 Height 13 cm Package 1 width 15 cm Package 1 Length 16 cm Unit Type of Package 2 S04 Number of Units in Package 2 12 Package 2 Weight 11.91 kg Package 2 Height 30 cm Package 2 width 40 cm Package 2 Length 60 cm
