| Article Number (Market Facing Number) | 3VA2712-2AC03-0AA0 |

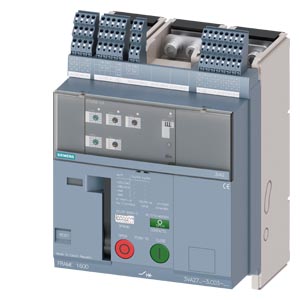

| Product Description | fixed-mounted molded case circuit breaker frame 1600; with RTC and 4AUX trip alarm switch S24; Icu “H” Icu=85kA @ 415V, 3-pole ETU350, LSI, In=1250A rotary coding switch Ir=500…1250A Isd=1…10xIn, Ii=1.5…15xIn N conductor protec. adjustable opt. w. ext. CT; up to 200% nut keeper kit No communication connection, no measurement function Manual operating mechanism of the spring energy store With mechanical calling without 2nd auxiliary release without 1st auxiliary release |
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB |
| |
| |
| Surcharge for Raw Materials | None |
| Metal Factor | LPB—– |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Standard lead time ex-works | 5 Day/Days |
| Net Weight (kg) | 12,190 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 85363090 |
| LKZ_FDB/ CatalogID | LV10 |
| Product Group | 5374 |
| Group Code | P360 |
| Country of origin | Czech Republic |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2018 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | |
| | Version | Classification | | eClass | 12 | 27-37-04-09 | | eClass | 6 | 27-37-04-09 | | eClass | 7.1 | 27-37-04-09 | | eClass | 8 | 27-37-04-09 | | eClass | 9 | 27-37-04-09 | | eClass | 9.1 | 27-37-04-09 | | ETIM | 7 | EC000228 | | ETIM | 8 | EC000228 | | IDEA | 4 | 4850 | | UNSPSC | 15 | 39-12-16-01 |
|
