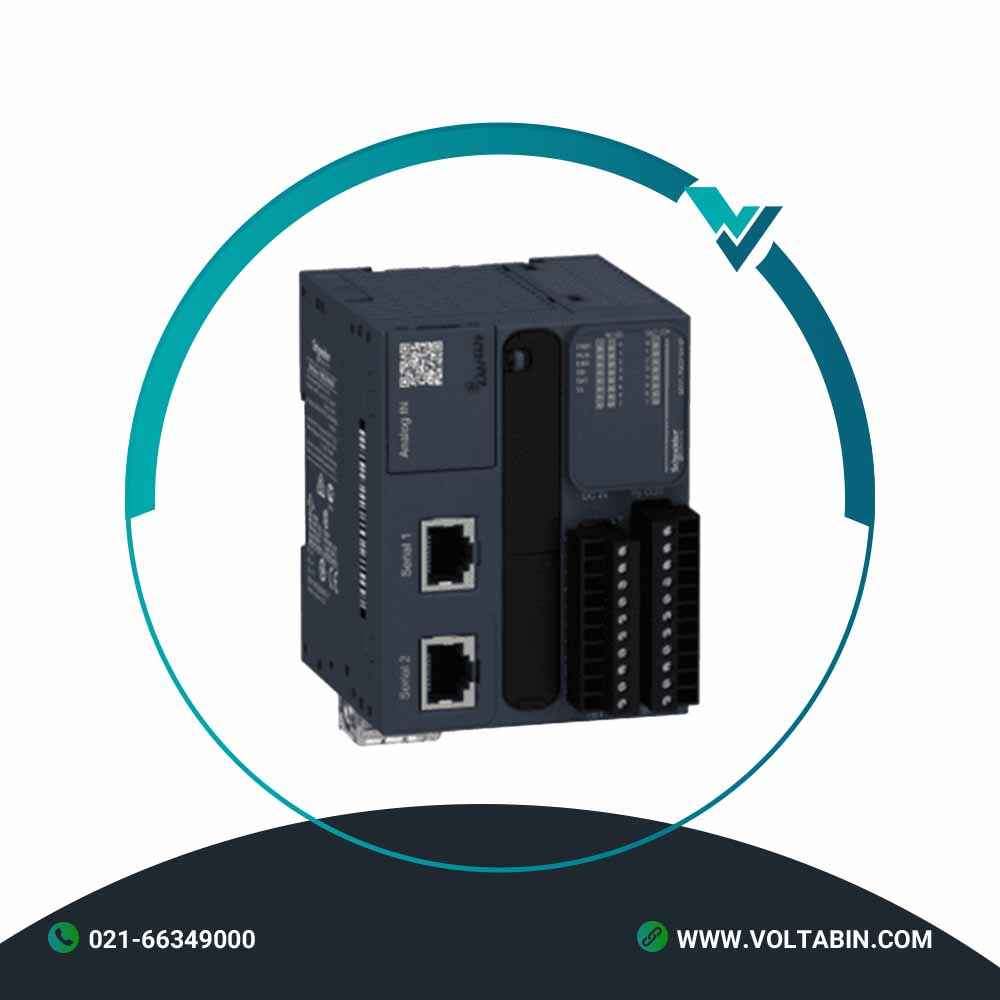

کنترلر اشنایدر مدل TM221M16R – کنترلر M221 با ۱۶ I/O رلهای
- SD card and USB port
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- 2 analog inputs and a broad choice of I/O
- M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
Range of product Modicon M221 Product or component type Logic controller [Us] rated supply voltage 24 V DC Discrete input number 8, discrete input conforming to IEC 61131-2 Type 1 Analogue input number 2 at 0…10 V Discrete output type Relay normally open Discrete output number 8 relay Discrete output voltage 5…125 V DC
5…250 V ACDiscrete output current 2 A Discrete I/O number 16 Maximum number of I/O expansion module 7 for relay output Supply voltage limits 20.4…28.8 V Inrush current 35 A Maximum power consumption in W 22.5 W at 24 V (with max number of I/O expansion module)
3.6 W at 24 V (without I/O expansion module)Power supply output current 0.52 A 5 V for expansion bus
0.46 A 24 V for expansion busDiscrete input logic Sink or source (positive/negative) Discrete input voltage 24 V Discrete input voltage type DC Analogue input resolution 10 bits LSB value 10 mV Conversion time 1 ms per channel + 1 controller cycle time for analogue input analog input Permitted overload on inputs +/- 30 V DC for 5 min (maximum) for analog input
+/- 13 V DC (permanent) for analog inputVoltage state 1 guaranteed >= 15 V for input Voltage state 0 guaranteed <= 5 V for input Discrete input current 7 mA for discrete input
5 mA for fast inputInput impedance 100 kOhm for analog input
3.4 kOhm for input
4.9 kOhm for fast inputResponse time 35 µs turn-off, I2…I5 terminal(s) for input
10 ms turn-on for output
10 ms turn-off for output
5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input
35 µs turn-on, other terminals terminal(s) for input
5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input
100 µs turn-off, other terminals terminal(s) for inputConfigurable filtering time 0 ms for input
3 ms for input
12 ms for inputOutput voltage limits 125 V DC
277 V ACMaximum current per output common 7 A Absolute accuracy error +/- 1 % of full scale for analog input Electrical durability 100000 cycles AC-12, 120 V, 240 VA, resistive
100000 cycles AC-12, 240 V, 480 VA, resistive
300000 cycles AC-12, 120 V, 80 VA, resistive
300000 cycles AC-12, 240 V, 160 VA, resistive
100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive
100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive
300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive
300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive
100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive
100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive
300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive
300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive
100000 cycles DC-12, 24 V, 48 W, resistive
300000 cycles DC-12, 24 V, 16 W, resistive
100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)
300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)Switching frequency 20 switching operations/minute with maximum load Mechanical durability 20000000 cycles for relay output Minimum load 1 mA at 5 V DC for relay output Protection type Without protection at 5 A Reset time 1 s Memory capacity 256 kB for user application and data RAM with 10000 instructions
256 kB for internal variables RAMData backed up 256 kB built-in flash memory for backup of application and data Data storage equipment 2 GB SD card (optional) Battery type BR2032 lithium non-rechargeable, battery life: 4 year(s) Backup time 1 year at 25 °C (by interruption of power supply) Execution time for 1 KInstruction 0.3 ms for event and periodic task
0.7 ms for other instructionExecution time per instruction 0.2 µs Boolean Exct time for event task 60 µs response time Application structure 1 configurable freewheeling/cyclic master task
1 cyclic auxiliary task
8 interrupt tasksmaximum size of object areas 255 %TM timers
8000 %MW memory words
255 %C counters
512 %M memory bits
512 %KW constant wordsRealtime clock With Clock drift <= 30 s/month at 25 °C Regulation loop Adjustable PID regulator up to 14 simultaneous loops Counting input number 4 fast input (HSC mode) at 100 kHz 32 bits counter function Pulse/direction
A/B
Single phaseIntegrated connection type USB port with mini B USB 2.0 connector
Non isolated serial link serial 1 with RJ45 connector and RS485 interface
Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interfaceSupply (Serial 1)serial link supply: 5 V, <200 mA Transmission rate 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
480 Mbit/s for USBCommunication port protocol USB port: USB – SoMachine-Network
Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-NetworkCommunication service Modbus slave
Modbus masterLocal signalling 1 LED (green) for PWR
1 LED (green) for RUN
1 LED (red) for module error (ERR)
1 LED (green) for SD card access (SD)
1 LED (red) for BAT
1 LED (green) for SL1
1 LED (green) for SL2
1 LED per channel (green) for I/O stateElectrical connection Terminal block, 3 terminal(s) for connecting the 24 V DC power supply
connector, 4 terminal(s) for analogue inputs
Mini B USB 2.0 connector for a programming terminal
removable screw terminal block, 10 terminal(s) for inputs
removable screw terminal block, 11 terminal(s) for outputsMaximum cable distance between devices Shielded cable: <10 m for fast input
Unshielded cable: <30 m for output
Unshielded cable: <30 m for digital input
Unshielded cable: <1 m for analog inputInsulation Between input and internal logic at 500 V AC
Between fast input and internal logic at 500 V AC
Non-insulated between inputs
Between output and internal logic at 500 V AC
Between output groups at 500 V AC
Non-insulated between analogue input and internal logic
Non-insulated between analogue inputsMarking CE Mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kitHeight 90 mm Depth 70 mm Width 70 mm Net weight 0.264 kg Standards EN/IEC 61131-2
EN/IEC 60664-1
EN/IEC 61010-2-201Product certifications DNV-GL
ABS
LR
cULus
CSA
RCM
IACS E10
EACEnvironmental characteristic Ordinary and hazardous location Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2Resistance to electromagnetic fields 10 V/m 80 MHz…1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz…2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2…2.7 GHz conforming to EN/IEC 61000-4-3Resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 Resistance to fast transients 2 kV (power lines) conforming to EN/IEC 61000-4-4
2 kV (relay output) conforming to EN/IEC 61000-4-4
1 kV (I/O) conforming to EN/IEC 61000-4-4
1 kV (Ethernet line) conforming to EN/IEC 61000-4-4
1 kV (serial link) conforming to EN/IEC 61000-4-4Surge withstand 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5
2 kV relay output common mode conforming to EN/IEC 61000-4-5
1 kV I/O common mode conforming to EN/IEC 61000-4-5
1 kV shielded cable common mode conforming to EN/IEC 61000-4-5
0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5
1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5
1 kV relay output differential mode conforming to EN/IEC 61000-4-5
0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5Resistance to conducted disturbances 10 V 0.15…80 MHz conforming to EN/IEC 61000-4-6
3 V 0.1…80 MHz conforming to Marine specification (LR, ABS, DNV, GL)
10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)Electromagnetic emission Conducted emissions – test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to EN/IEC 55011
Conducted emissions – test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to EN/IEC 55011
Conducted emissions – test level: 120…69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011
Conducted emissions – test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011
Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Conducted emissions – test level: 79…63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011
Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to EN/IEC 55011immunity to microbreaks 10 ms Ambient air temperature for operation -10…55 °C (horizontal installation)
-10…35 °C (vertical installation)Ambient air temperature for storage -25…70 °C Relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)IP degree of protection IP20 with protective cover in place Pollution degree <= 2 Operating altitude 0…2000 m Storage altitude 0…3000 m Vibration resistance 3.5 mm at 5…8.4 Hz on symmetrical rail
3.5 mm at 5…8.4 Hz on panel mounting
1 gn at 8.4…150 Hz on symmetrical rail
1 gn at 8.4…150 Hz on panel mountingShock resistance 98 m/s² for 11 ms Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.041 cm Package 1 Width 10.83 cm Package 1 Length 12.81 cm Package 1 Weight 440.0 g Unit Type of Package 2 CAR Number of Units in Package 2 24 Package 2 Height 29.1 cm Package 2 Width 39.6 cm Package 2 Length 57.8 cm Package 2 Weight 11.66 kg Unit Type of Package 3 P12 Number of Units in Package 3 288 Package 3 Height 105.0 cm Package 3 Width 120.0 cm Package 3 Length 80.0 cm Package 3 Weight 148 kg
